imaging::MrepModel2d Class Reference
[M-Rep Module]

Medial axis parametrization of planar shapes. More...

#include <MrepModel2d.hpp>

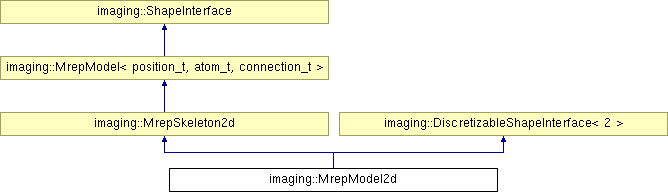

Inheritance diagram for imaging::MrepModel2d:

imaging::MrepSkeleton2d imaging::DiscretizableShapeInterface< 2 > imaging::MrepModel< position_t, atom_t, connection_t > imaging::ShapeInterface

List of all members.

Public Types

typedef PeriodicBspline
< ublas::fixed_vector< float_t, 2 > >
curve_t

Public Member Functions

 MrepModel2d (const Position2d &position, size_t n_atoms=0, size_t n_connections=0)
virtual std::auto_ptr
< BoundaryDiscretizer< 2 > >
boundary_discretizer (size_t n_points) const
void compute_boundary (curve_t &spline_curve) const
 Computes the boundary spline curve of the model.


Detailed Description

Medial axis parametrization of planar shapes.

Member Function Documentation

std::auto_ptr< BoundaryDiscretizer< 2 > > imaging::MrepModel2d::boundary_discretizer ( size_t  n_points  )  const [virtual]

Returns a boundary discretizer for this shape.

Implements imaging::DiscretizableShapeInterface< 2 >.


The documentation for this class was generated from the following files:
